  • Small Parts Hardware Kit (EngineTech HK103) 1986 - 2014

    C$42.40 C$25.45

    In Stock - Ships within 24 Hours


    Fits :

        Chevrolet & Isuzu  4.3L  V6    1986 - 2014

        For Engines WITHOUT a Balance Shaft

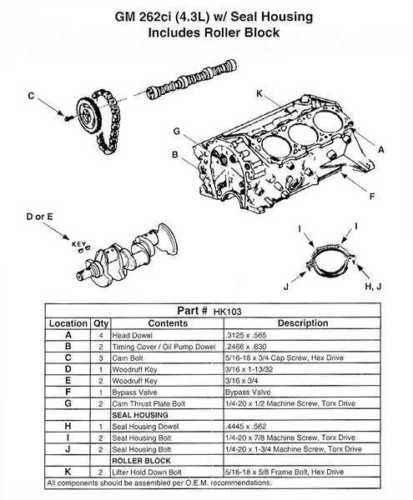

    Includes :

        (4) Head Dowel .3125 x .565

        (2) Timing Cover / Oil Pump Dowel .2466 x 6.30

        (3) Cam Bolt 5/16-18 x 3/4 Gr.8 Bolt, Hex head

        (1) Woodruff Key 3/16 x 1-13/32

        (2) Woodruff Key 3/16 x 3/4

        (1) Bypass Valve

        (2) Cam Thrust Plate Bolt 1/4-20 x 1/2 Machine Screw, Torx Drive

        (1) Seal Housing Dowel .4445 x .562

        (2) Seal Housing Bolt 1/4-20 x 1-3/4 Machine Screw, Torx Drive

        (2) Seal Housing Bolt 1/4-20 x 7/8 Machine Screw, Torx Drive

        (2) Lifter Hold Down Bolt (Roller Block) 5/16-18 x 5/8 Frame Bolt, Hex Drive

        Hard to find parts all in one convenient package!

        Equiv. to Durabond  FKC-2A  (May be Substituted)

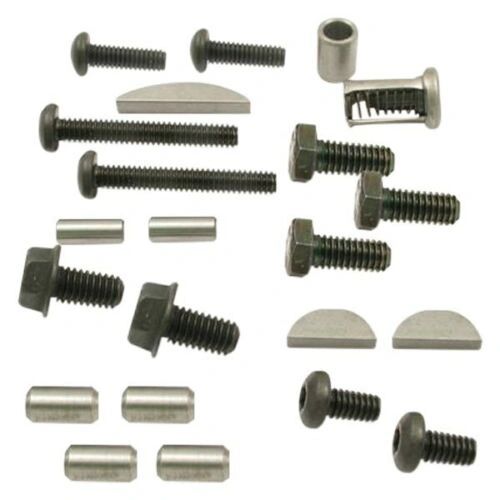

        Picture is Accurate
